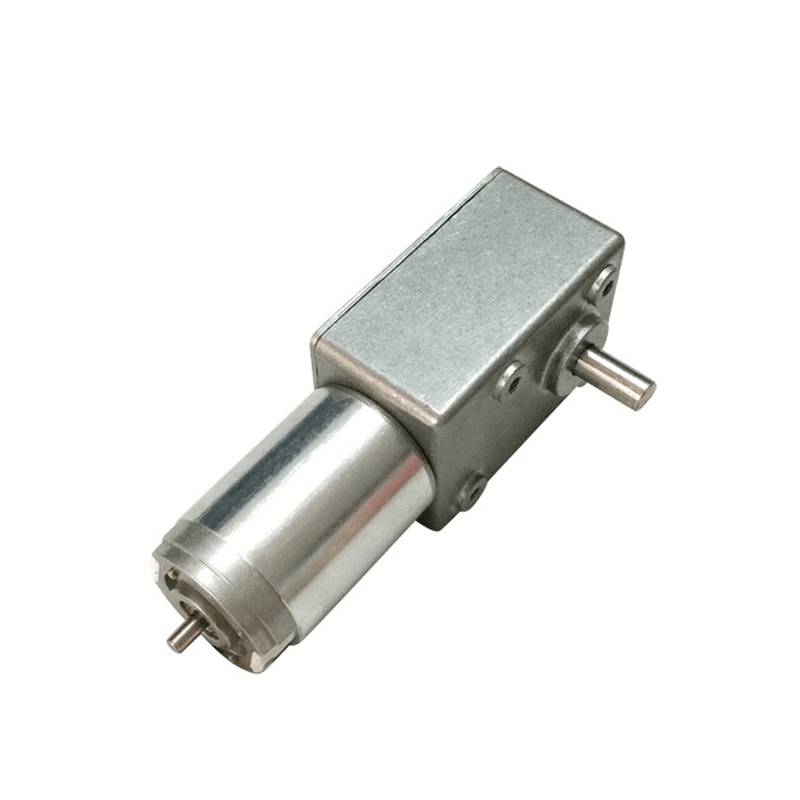

WGM82-A DC Worm Gear Motor

12v worm gear motor 24 worm gear motor high Torque Worm Gearbox right angle DC Motor Low Noise and Long life max stalll torque can reach 100kg.cm

Products Inquiry

Name :

Tel :

Email :

Message :

PRODUCT INFORMATION

Gear Ratio

Worm Gear Motor Dimensions

Worm Gear Motor Data

Serial Number	6050	5050	8092	6092	5092	80175	60175	50175	40175
No load speed rpm	120	100	87	66	54	45	34	28	23
Rated speed rpm	95	80	65	50	40	34	25	21	17
rated torque kg.cm	19.2	18.8	47.8	35.8	29.9	82.6	61.9	56.9	45.5
Max Torque kg.cm	60	60	100	100	100	200	200	200	200

Serial Number	60232	50232	40232	80527	60527	50527	40527	35527	20527
No load speed rpm	26	22	17	15	11	9.5	7.5	6.5	4
Rated speed rpm	20	16	13	12	9	7	5	4.5	3
rated torque kg.cm	82.2	68.5	54.7	159	142	126	114	101	75.8
Max Torque kg.cm	200	200	200	300	300	300	200	200	200
Remarks: 1. Gearbox output shaft dimension and shape can be customized, shaft can be D-Cut, with hole,dual shaft etc. 2. DC Motor input speed can be customized.and gear ratio can be changed too,so gear motor can be with different final output speed rpm. 3.the dc motor is precise permanet magnet carbon brush dc motor.it can be with brushless dc motors too. 4.gear motor working voltage can be 6V, 9V,12V, 24V. 5.This worm gearbox can be matched with other type DC Motors 550 755 775 etc. if you have different speed and torque requirements can be adjusted. 6.the gearbox is with worm gear, it is widely used in all kinds of micro automation industry.main function-make high speed dc motor slow down by worm gear reduction. 7.this right angle gear motor main features- low noise,long lifespan,low rpm,high torque and self-lock function.
